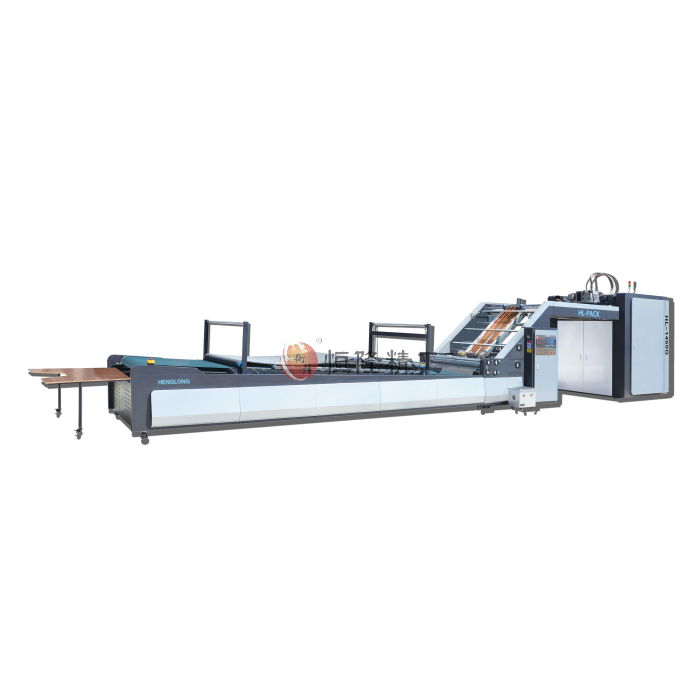

名稱：全自動高速裱紙機
英文：Full intelligent high speed paper laminating machine

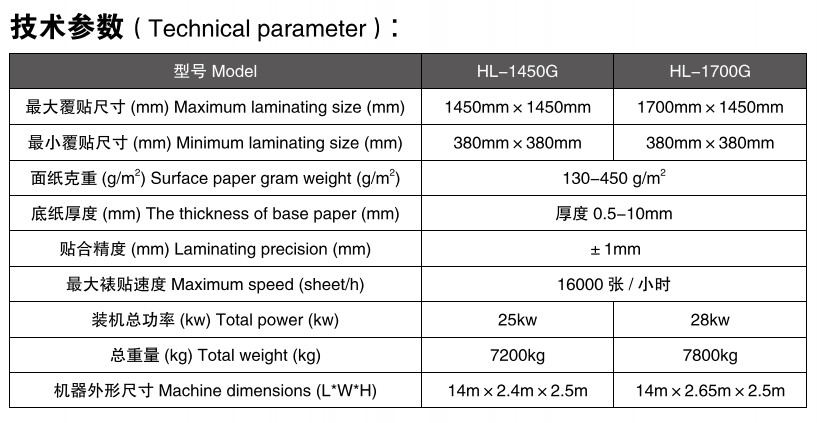

型號：HL-1450/1700型
電源：AC 380V/50HZ
功率：25~28KW
重量：7.2~7.8T
速度：16000張/小時
裱貼精度：±1mm
主要性能：
◆智能化高速貼合，每小時16000張(紙張700mm以內)
◆送紙機構采用真空吸附配合高速共軛凸輪結構的飛達頭保證在高速送紙情況下，平穩準確。
◆膠水涂布裝置：高精度涂布輸送搭配紙張及上膠輥邊擋結構自動頁面控制，高速運轉不溢膠能調節膠水回流，避免膠水損耗浪費。
◆感測補償對位裝置：利用多組電眼感知底紙前進相對位置，使面紙兩側伺服馬達做獨立傳動補償，上下紙張對位，精確順暢。
◆全功能電控系統：應用人機界面及PLC程序燈號顯示，能自動偵測作業狀態異常，顯示工作記錄。
MAIN PERFORMANCE:
◆ Intelligent high-speed laminating,16000 sheets per hour(when paper size is less than 700mm)
◆ The paper feeding mechanism adopts the vacuum adsorption and high-speed conjugate CAM structure of the feeder head to ensure stable and accurate in the condition of high-speed paper feeding.
◆ Glue coating device:high-precision coating transport the matching paper and the glue feeding roller side stop structure automatic control the paper,high-speed running without overflow the glue and can adjust the glue backflow,to avoid glue loss and waste.
◆ Sensing compensation alignment device:use multiple sets of electric eyes to perceive the relative position of the base paper forward,use the servo motor on both sides of the face paper to independently drive compensation,the upper and lower paper alignment,accurate and smooth. ◆ Full function electronic control system:the application of human-machine interface and PLC program light display,can automatically detect abnormal work status,display work records.
